PLEASE NOTE : The patch below is incomplete; lacking additional camera, peripheral and lego hardware.

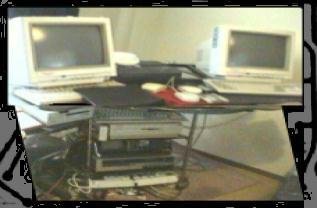

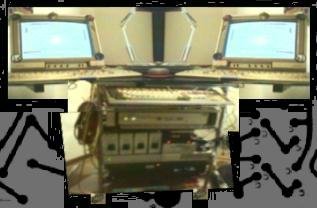

POD A alone has over 140 I/O patch points, POD B some 50 I/O patch points.
Only main Audio/Video/Midi/Parnet/Plip veins are indicated below; and therefore its only a rough guide for the flow of data..


* PIPELINE KEY: PODs A+B *
AU = Audio
AD = Audio-Dig
VC = Comp video
VS = SVHS video
VR = RF video
DX = DMX
MI = Midi
PL = Plip
PA = Parnet
TW = Twin
IR = InfraRed
MD = Modem
SE = Seria

* HARDWARE: PODs A+B *
2 x A500
2 x A1200
2 x ACD32 + Phase5
2 x A3000 + MShop
6 x Midi Interfaces
1 x Dat drive - D1
3 x Modems -24/33/56K
4 x Genlocks - ED/NER
2 x VCR's + Prog Monitor
4 x 1084s Monitors
3 x Ext Floppy Drives
1 x RF Transmitter
1 x Audio Digitizer
OUT >
IN \/ 		A) A500-A B) ACD32-A C) A3000-A + NER D) A1200-A + GVP E) VCR-A F) TRN G) A500-B H) ACD32-B + ED I) A3000-B + ED J) A1200-B + ED K) VCR-B < OUT
IN \/
AU VC TW MI PA AU VC VS TW MI AU AD VC VS DX PL PA TW MI MD IR AU AD VC VS PL PA TW MI MD AU VC VR AU VC AU VC SE MI PA AU VC VS SE MI PA AU VC PA TW MI IR AU VC VS PA TW MI AU VC VR
A)-SE A)-SE
MI   MI MI
PA PA
B)-SE B)-SE
MI MI   MI
C)-AD   AU AD C)-AD
VC VC   VC
VS VS VS
DX DX
PL PL PL
PA PA PA
TW TW TW
MI   MI MI
MD     MD MD
D)-AD   D)-AD
VC VC VC
VS VS
PL PL PL
PA PA PA
TW TW TW
MI MI MI
MD MD MD
E)-AU AU E)-AU
VC   VC VC
VR VR VR
F)-AU AU VC F)-AU
VC VC
G)-SE G)-SE
MI MI
PA PA
H)-VC H)-VC
VS VS
SE SE
MI MI
PA PA
I)-VC VC I)-VC
VS VS VS
PA PA
TW TW
MI MI
J)-VC VC J)-VC
VS VS
PA PA
TW TW
MI MI
K)-AU AU AU AU AU K)-AU
VC VC VC
VR VR VR
IN /\
OUT > 		AU VC TW MI PA AU VC VS TW MI AU AD VC VS DX PL PA TW MI MD IR AU AD VC VS PL PA TW MI MD AU VC VR AU VC AU VC SE MI PA AU VC VS SE MI PA AU VC PA TW MI IR AU VC VS PA TW MI AU VC VR IN /\
< OUT
A) A500-A B) ACD32-A C) A3000-A + NER D) A1200-A + GVP E) VCR-A F) TRN G) A500-B H) ACD32-B + ED I) A3000-B + ED J) A1200-B + ED K) VCR-B
